Thermal Design and Solution Optimization

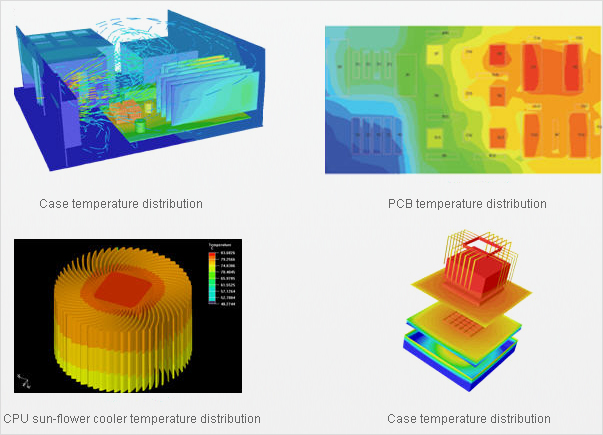

At the beginning of the product reasearch and development, our company provide themal simulation suport and service for customer  thermal-tech demand.Take the advantage of famous thermal design software Icepak, Flotherm, Qfin and other design softwares; Evaluate by integrating theory and practice; our experienced engineers can provide optimized thermal solution for customers.

Our team have abundant experience in natural convection, forced convection, liquid cooled themal solution. The designed heat sink has successed applied in communication, IT, chemical, server and new energy(LED,solar, IGBT) industrial field.

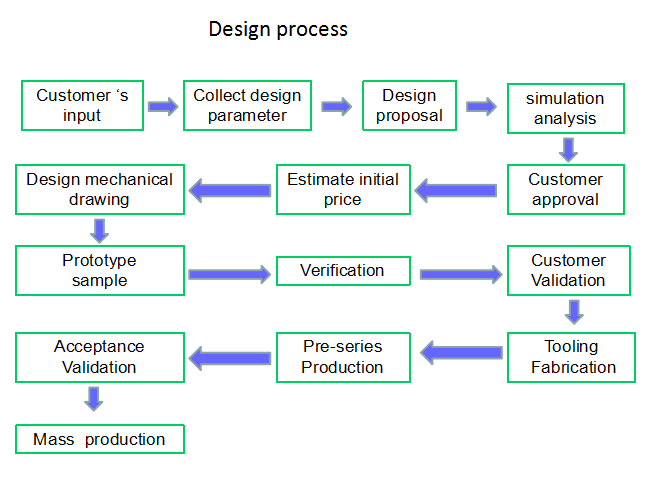

Customer thermal design procedure：

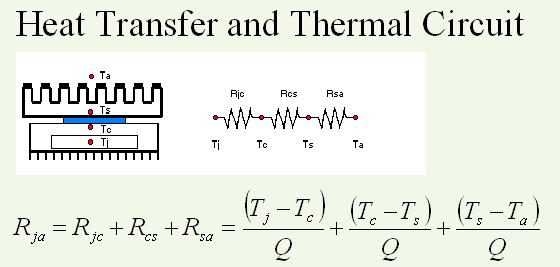

Heat transfer method

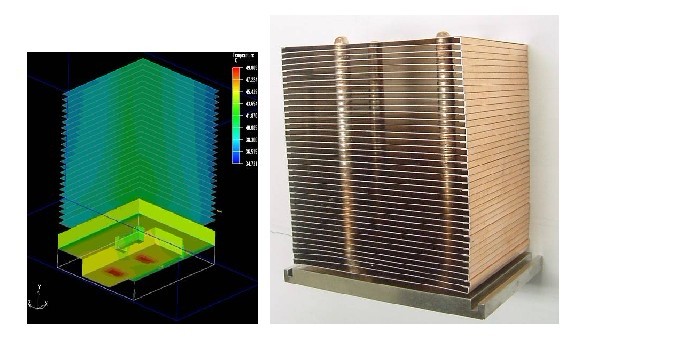

1> Heat pipe soldering solution demonstration:

For server CPU heat sink, thermal power 130Watt, environment temperature 35degree, customer require Tj temperature below 55 degree.

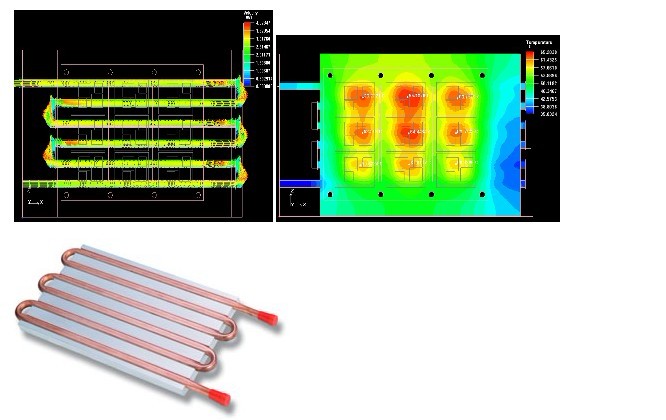

2> Water cooled solution demonstration:

For 2.5MW air-cooled inverter, thermal power 2200Watt, environment temperature35degree, customer require Tj temperature below 70 degree.

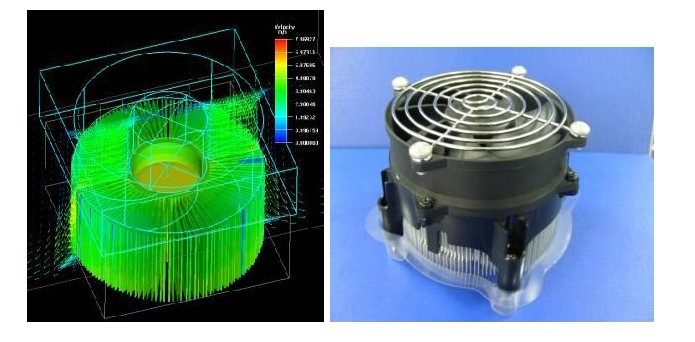

3> Sun-flower solution demonstration:

For computer CPU heat sink, thermal power 110Watt, environment temperature 35degree, customer require Tj temperature below 80 degree.
